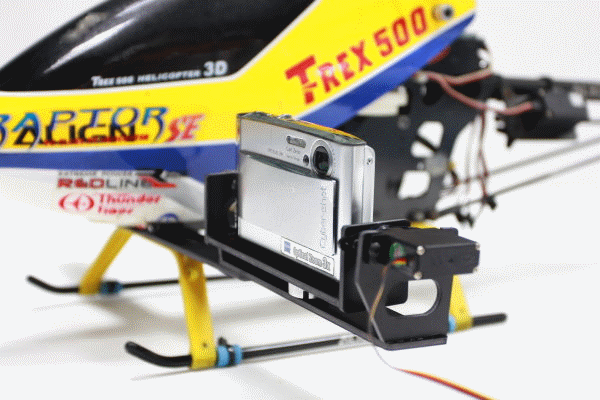

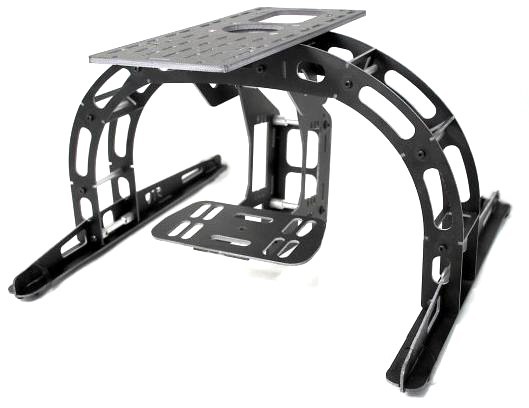

Camera Mount & Gimbals

• 2-axis controllable.
• Fit for most medium size SLR-like camera. (detail size, please check potoos.
• Build-in adjustable remote control shutter.

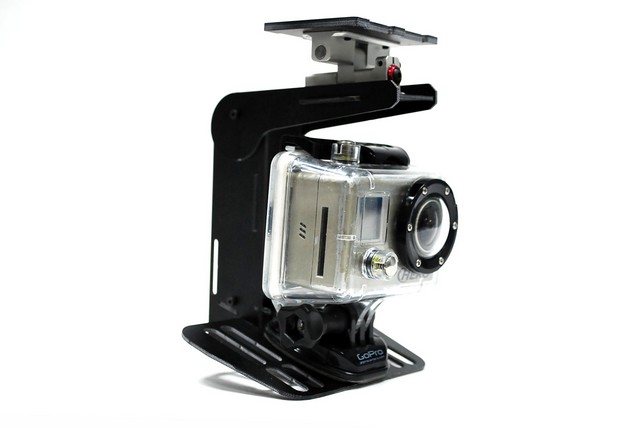

• Adaptable for wide-angle camera such as GoPro. The landing skid is adjustable, won't be the obstacle to camera view.
• Easy to install/uninstall and portable -- mount through only four screws.
• Fit both GAUI 330X-S, 500X, Stendard Tech Multicopter series without modify.
• Fit for most RC aero vehicles via easily modify. (see the picture of mounting plate dimation)
• Lightweight only 212g

• RC Camera Mount Kit S-550 Un-assembled Kit

• Hitec HS-82MG x 2, HS-65MG x 1
• Gyro or stabilizer (Option)

• Manual download

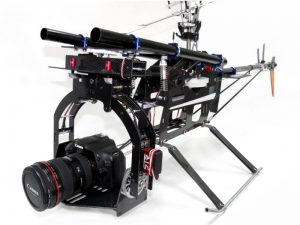

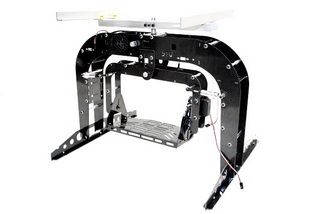

Thank you for purchasing S-1000 3-Axis control/stable camera mount.

Comparing S-1000 with other motor hi-end camera mount in the market, S-1000 has more unique features that can't be found on other products.

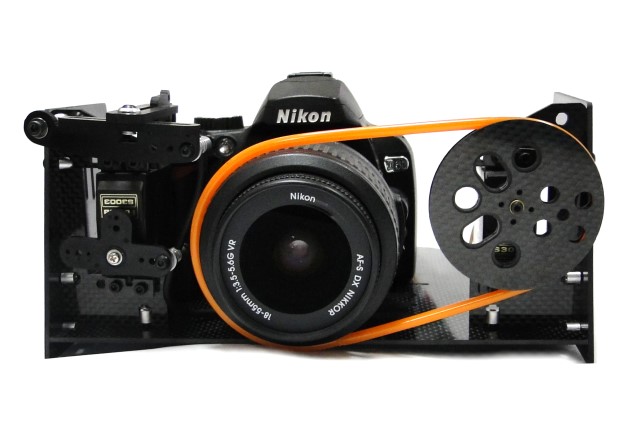

1. The axis of camera up/down control, we select belt driven system. As the loading of servo is too heavy and the axis need to hold and move heavy camera, general driven system (gear drive or direct drive) usually cause vibration during moving. Belt driven system can effectively reduce the vibration.
2. The center axis driven system, we specially use worm gear system, this system is an anti torque of main rotor towards the damage cost
3. Make by 3K high fiber its light, strong and firm.
4. The absorber of the stabilizer can absorb the vibration effectively.
5. The adjustable landing skid adapter is suitable for the majority of RC market's products.
6. Provides a very big space for installing the extra electronic system including gyroscope ,AV Tx, batteries, cooling fan…etc

Specifications:

• The S-1000 itself is weighed about 1.8kg and the dimension is 447 x 360 x390mm

Package content:

• S-1000 Camera Mount Kit (85% assembled) x 1
• Continuous Rotation Servo x 3
• Blue and red foam tube x 2 (one of each)

Note:

• Please note all screws are set temporarily when you recieve this product. You will need to re-secure all screws with Loctite or simmilar retainer where applicable.

Using suggestion:

If you want to get high quality video, we suggest to use electrical power helicopter. This is because the vibration caused by nitro or gas engine will degrade the video performance significantly (gas > nitro> electric). Furthermore, all screws in use for the camera mount and heli should be secured firmly. And you shall minimize any play in the heli and make sure the blade set are well balanced.. This will minimize the time you spent for fine tuning based on our experience during our testing period T-REX 700 Nitro with e-conversion. You may also use 700E or other same graded helicopter. As for the blades, you may choose the special design for F3C or perhaps flaunt the high buoyancy characteristic blade.

Moreover S-1000 used three Continuous Rotation Servo  This servo is different from other servos in the market. The biggest different is it does not have neutral point, therefore when in used; each time needs to adjust a little bit the radio. This situation occurs on how you lunch your receiver and receiver quality.

Another important tip is the choice of gyro. As Continuous Rotation Servo can't work with gyro with head-lock mode, please set your gyro in non-head lock mode if your gyro's mode can be choose. We have test GWS PG-03, it work well with our product and GWS PG-03 is low cost and easy to use.

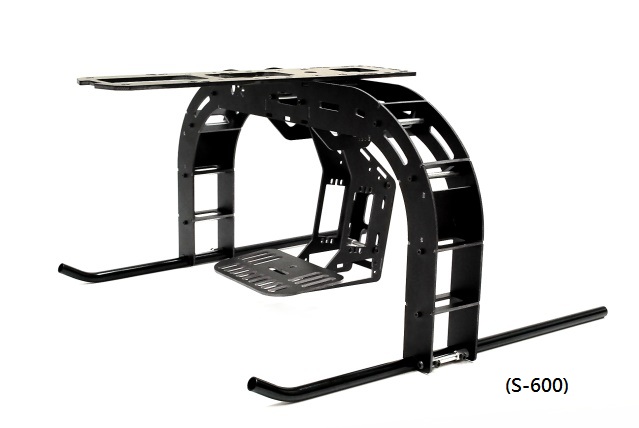

This product upgrade the camera tilt for one axis controlable (S-600 V1) to two axis controlable system. We also will offer upgrade set for customers already bought V1 can easy upgrade to two axis system.

Features:

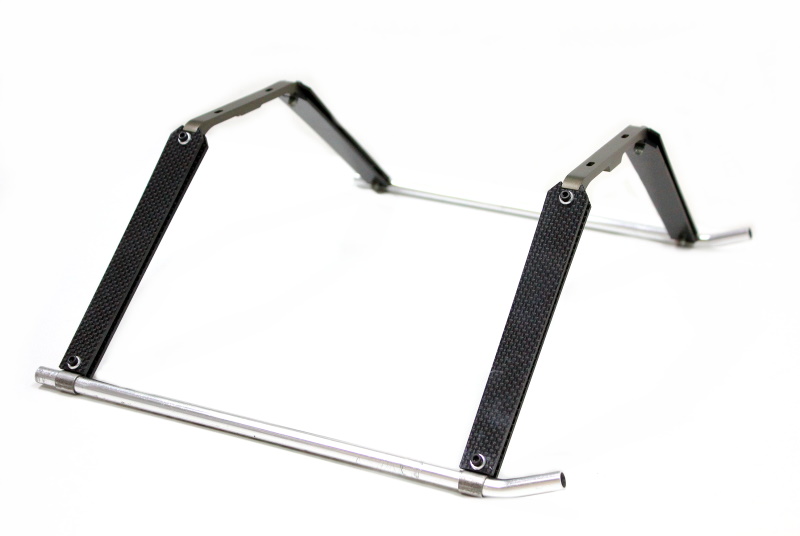

• New design heli landing gear for wide-angle camera. (e.g. GoPro). The landing gear will net be take into the video. (see demo video. take by GoPro)
• The camera mount fit with most 500~600 size RC-Heli in market
• Two-axis controllable.
• Recommand two person control.
• 85% assembled.
• 3K Carbon fiber made camera pan-tilt.
• G10 fiber made landing gear.

Specification:

• Weight: 650g w/o camera.
• 2.0mm G10 fiber.
• Two-axis controllable
• Fit for camera size WxH (10.2cm x 9.5cm)

Ohter Information:

• 2 Axis Camera Mount with Stabilizer Test Video
• User's manual download

Require:

• 500~600 sieze RC Heli
• Hitec 65MG x 2

Note:

• The camera and servos in pictures are not included in package.
• We highly recommand using electric power heli, because engine power helis usually with more vibration. It will reduce your video quality

Other information:

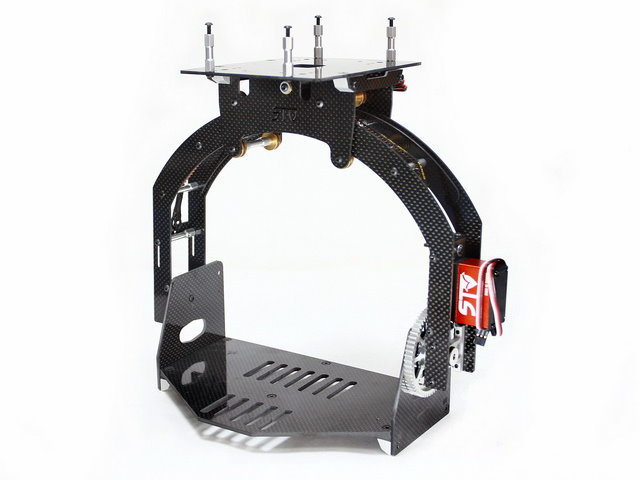

The S-902 is highly integrated and stable design for RC helicopters based on our intensive prototyping and test. The width and mounting position are totally adjustable to fit most helis today. It is suitable for many 600~700 class R/C helicopters in the market today.
We also provide two sets of springs with different hardness for absorber which can accommodate any kinds of camera with different weight.

Features:

• Special driven system. Working more stable and smooth.
• Front-mount design with independent suspension damping, can withstand more vibration from the helicopter.
• 85% pre-assembled, you can quickly and easily installed on Align T-REX 600/700 series and Mikado Logo.
• All mounting points are adjustable, let S-902 with widely compatibility to fit with most  helis on market.

Specifications:

• Weight: 840g
• Can accommodate the size of camera: W: less than 205mm H: less than 160mm. see pictures

Package:

• S-902 with two servos (pre install)
• Two different elastic spring (two of each)
• Note: The landing skid and battery mount are not included.

Package content:

Specifications:

Package Content

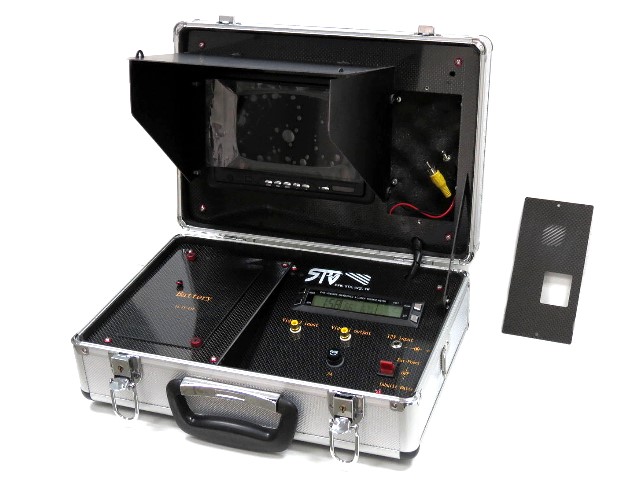

Specifications:

• Screen Dim: 7"
• Resolution: 800x400
• Input: PAL/NTSC
• Power: DC 12V
• Condumption: 7.5W
• Video: 2 video imput selectable
• Net Weight: 2700g (without battery)
• Dimension: 380 x 280 x 150mm

User Manual Download

Note :

• The tripod shown in the picture is NOT part of the package.
• This item without Tx and Rx.

"NOT ONLY FOR S-500/S-600"

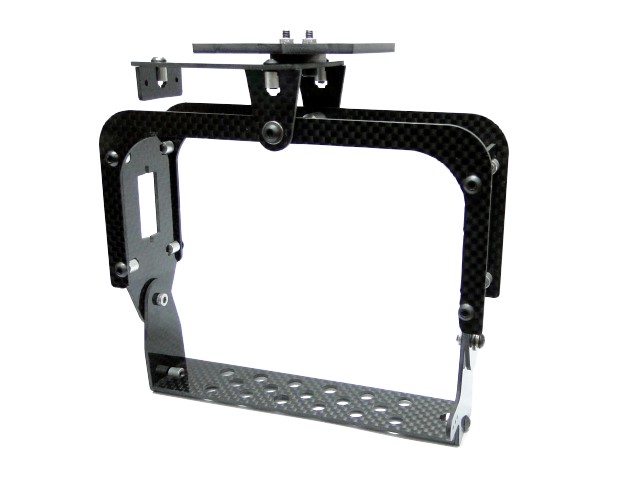

The Pan-Roll is for RC Heli Camera Mount Kit S-600 and RC Camera Mount Kit S-500 for 330X/500X upgrade to 2-Axis control system.
But the product is not limited to S-500/S-600. The Pan-Title itself is work standalone.
It can also be installed on any Aero-planes like Quad-Copter or RC Helis generally through cable ties. Let your RC stuff become an Aero-Spy.

Features:

• 2-Axis Controllable
• 3K Carbon Fiber made
• Easy to be installed
• Light weight and durable

Package content:

• 2-Axis Pan-Roll Camera Mount Upgrade Un-assembled Kit

•
  Hitec HS-65MG x 2 included
• one TAROT ZYX-S 3 Axis Gyro System included

Upgrade your S-600 to 2-axis system	Upgrade most Aero-platform

Description:

We receive many customer inquiries to ask the S-802 camera mount sold in separately.

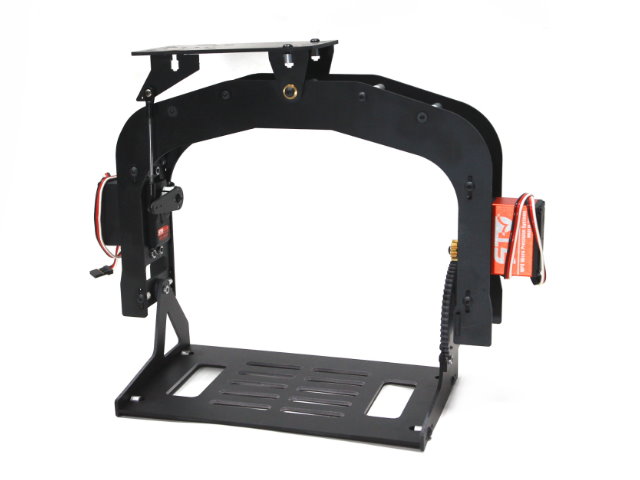

The main features of the tilt-roll built-in S-802 are low cost, accommodate larger camera and simple structure.
We will be sold it separately. And the kit include an universal adapter plate. You can through simple modifications to fix it anywhere.
New version replace the servo to special edition 3.5T digital servo to improve the pitch control speed

Features:

Applicable to larger camera. (see pictures)
Light weight
Durable
95% assembled. Only need two setps to finish.


Specifications:

Weight: 338g
Size: see pictures
95% assembled
Two servos included
one TAROT ZYX-S 3 Axis Gyro System included

manual

Package content

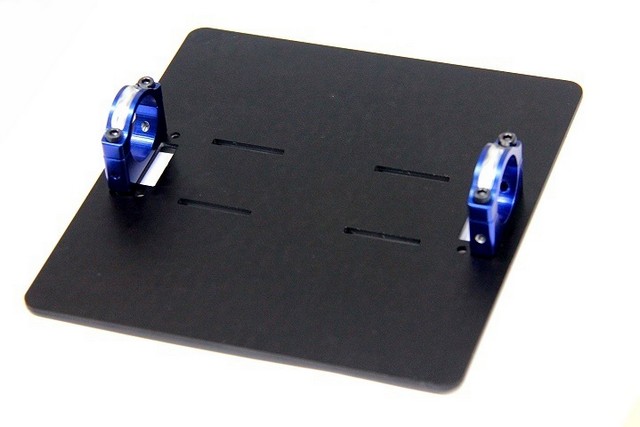

Button plate dimension

Features:

Wide pitch and roll angle.
Fast response speed and moving spped.
Special edition 3.5T digital servo improve the response spped and performance.
New patented roll driven structure can reduce the weight and absorb the vibration when gear train movement.
Carbon fiber made, strong enough for carry large SLR cameras but also very light.
The flexible design of the bottom plate, can be easily to mount in a variety of aircraft.
Large space for most SLR cameras, such like 5D2...etc

Specifications:
Dimension: please check photos.
Working angle of eacy axis: Roll: 35 L and R, Pitch: 90 up and down
Weight: 655g
Servo included: 3.5T x 2
Mount plate dimension: please check photos.
one TAROT ZYX-S 3 Axis Gyro System included

• Wide pitch and roll angle.
• Fast response speed and moving spped.
• Special edition 3.5T digital servo improve the response spped and performance.
• New patented roll driven structure can reduce the weight and absorb the vibration when gear train movement.
• Carbon fiber made, strong enough for carry large SLR cameras but also very light.
• The flexible design of the bottom plate, can be easily to mount in a variety of aircraft.
• Large space for most SLR cameras, such like 5D2...etc
• Front-mount design with independent suspension damping, can withstand more vibration from the helicopter.
• 85% pre-assembled, you can quickly and easily installed on Align T-REX 600/700 series and Mikado Logo.
• All mounting points are adjustable, let S-903 with widely compatibility to fit with most helis on market.

• Weight: 840g
• Can accommodate the size of camera: W: less than 205mm H: less than 160mm. see pictures

• S-903 with three servos (pre install)

"NOT ONLY FOR S-500/S-600"

The Pan-Roll is for RC Heli Camera Mount Kit S-600 and RC Camera Mount Kit S-500 for 330X/500X upgrade to 2-Axis control system.
But the product is not limited to S-500/S-600. The Pan-Title itself is work standalone.
It can also be installed on any Aero-planes like Quad-Copter or RC Helis generally through cable ties. Let your RC stuff become an Aero-Spy.

Features:

• 2-Axis Controllable
• 3K Carbon Fiber made
• Easy to be installed
• Light weight and durable

Package content:

• 2-Axis Pan-Roll Camera Mount Upgrade Un-assembled Kit

Other information: How to use the Anti-Vibration Adaptor on 2-Axis Pan-Tilt Camera

Upgrade your S-600 to 2-axis system Upgrade most Aero-platform
